Cast lips


Mining cast lips for hydraulic face shovels over 500 tons

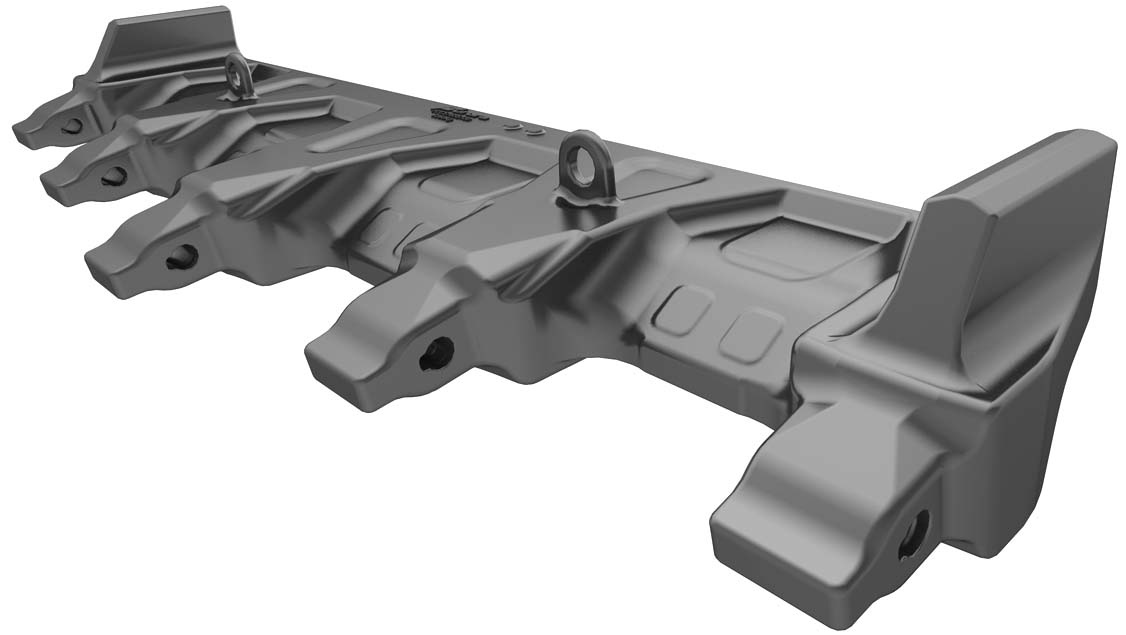

rendered 3d view of futura mining cast blades

Cast lips

Cast lips for large hydraulic excavator and face shovels are built for maximum strength and wear life. The new FUTURA cast lips for the mining industry are now available. At the moment 4 models have been manufactured, compatible with Esco Loadmaster lips:

  • FLCS148S130 (OEM cross reference LCS148S130)
  • FLCS163S130  (OEM cross reference LCS163S130)
  • FLCS169S130 (OEM cross reference LCS169S130)
  • FLCS201S130 (OEM cross reference LCS210S130)

These cast lips can be assembled on hydraulic excavators over 500 tons, for example: EX5500, PC5500,H455S, RH200, PC8000 OR H65S

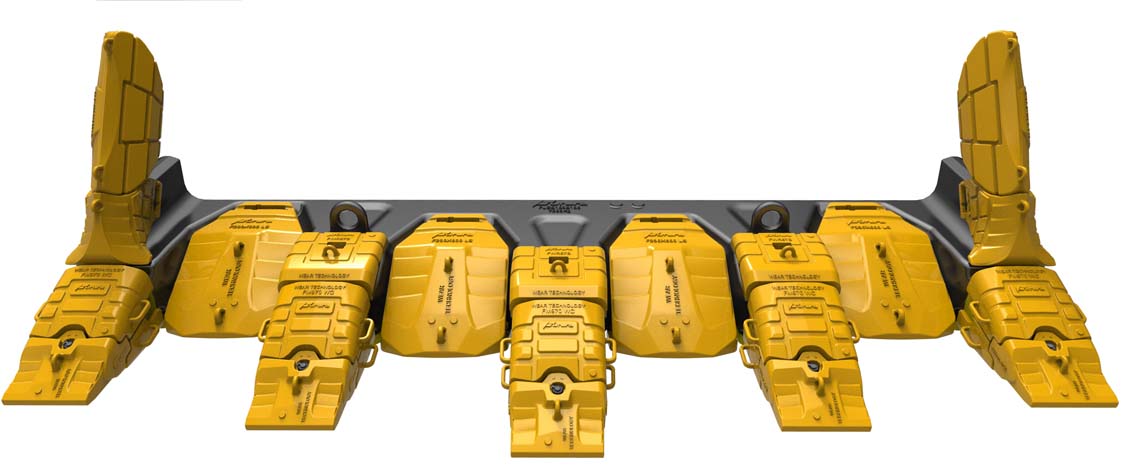

Full lip protection wear parts available

Full lip protection reduces lip washout and wear
Use Futura MINER hammerless teeth for better penetration and for a safe and easy installation and replacement
FUTURA PARTS: FM1300 adapters | FM1120 teeth | F230X430 lip shrouds can be assembled with these cast lips.

Available parts
cast lip drawing

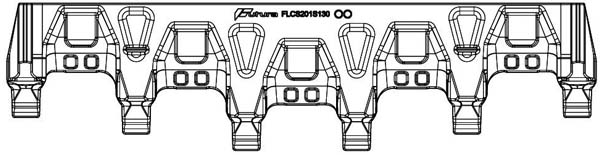

CAST LIP FLCS201S130
mining cast lip drawing

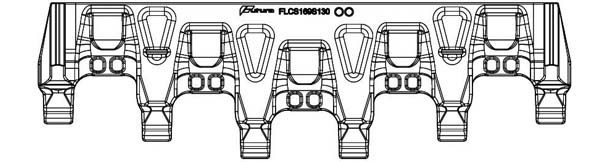

CAST LIP FLCS169S130

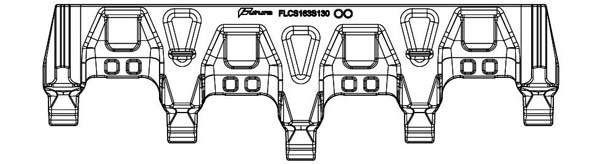

CAST LIP FLCS163S130
cast lip drawing

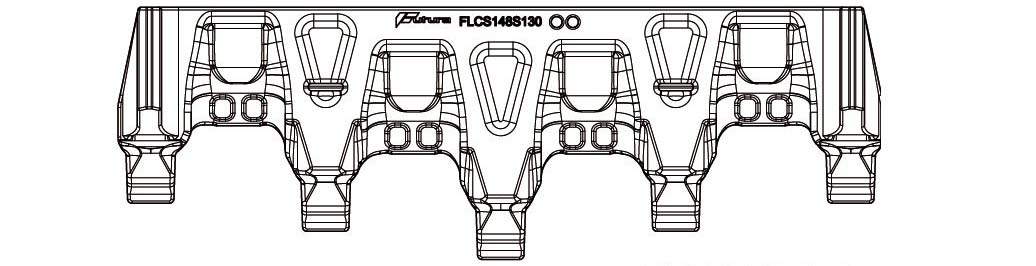

CAST LIP FLCS148S130
